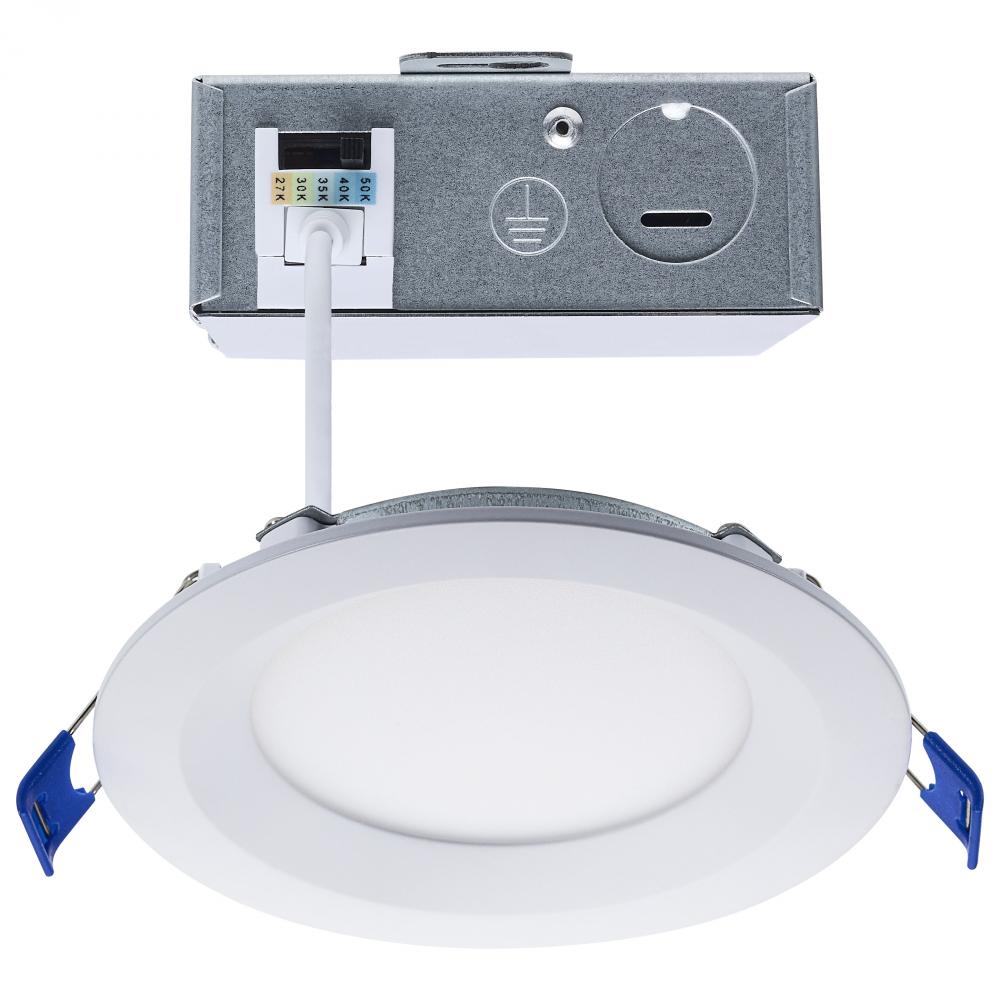

10 Watt LED Direct Wire Downlight; Slimfit; Smooth Baffle; 4 Inch; CCT Selectable; Round; Remote

Satco Products Inc.
10 Watt LED Direct Wire Downlight; Slimfit; Smooth Baffle; 4 Inch; CCT Selectable; Round; Remote

Part Number: S11870R1

UPC: 00045923410840

List Price:

/ / 1

($17.99 / 1)

WAS

Call for Price

Call Online Sales at 732-349-4100 for Availability

Quantity:

Finish :

Matte White

Return

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Recommended Items

Product Overview

10 Watt LED Direct Wire Downlight; Slimfit; Smooth Baffle; 4 Inch; CCT Selectable; Round; Remote Driver; White Finish

Specifications

Details

Product Height:

1.34"

Product Width:

5.06"

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Option:

Energy Star , LED , Prop 65

Category:

Recessed

Sub Category:

Direct Wire

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Shape:

Integrated LED

Bulb Type:

LED

Diameter:

5.06

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.6010

Lumens:

850L

Ship Carton Height:

5.31

Ship Carton Length:

5.79

Ship Carton Width:

3.35

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.088A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

105

CA Prop-65:

Lead

Carton Cubic Feet:

0.0596

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

California T24 2016 - 2025 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Ceiling Aperture:

4.25 in. Cutout

Closet Rated:

Yes

Connection:

Direct Wired

Country Of Origin:

Thailand

CRI:

Dimmable Down To:

100 to 20 percent

Dimming Type:

Phase cut

Efficacy:

82.52 LPW

ES Category:

Downlight Recessed

ES Unique ID:

ESID-4046693

FCC Compliant:

Yes

Feature 1:

5 CCT Selectable (2700K to 5000K)

Feature 2:

4-Inch Round, White Finish

Feature 3:

Regress Baffle for Reduced Glare

Feature 4:

90 CRI High Quality Illumination

Feature 5:

Dimmable

Feature 6:

Wet location rated

Feature 7:

IC Rated and Airtight

Feature 8:

50,000 Hour Functional Life

Feature 9:

5 Year Warranty

Finish Family:

White

Fixture shape:

Round

Has Camera:

Has Emergency Battery:

IC Rated:

Yes

Incandescent Equivalent:

65W

Indoor Outdoor:

Indoor

IOT Enabled:

JA8 Compliant:

Yes

Lens Finish:

Matte Frosted

Lens Material:

Polystyrene (PS)

Long Description:

SATCO NUVO's low-profile 4" round regress baffle downlight, S11870R1, combines performance, versatility, and ease of installation. It features 5 CCT selectable settings (2700K–5000K) to accommodate a wide range of lighting preferences, while the

Material:

Aluminum

Mounting Diameter:

4.25

Mounting Height:

1.5

Mounting Procedure:

Recessed Ceiling

NEC Compliance:

Clothes Closet Certified - Reg: 410.16 (A)(3) and 410.16 (C)(5)

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

R9 Value:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's low-profile regress baffle downlights combine performance, versatility, and ease of installation. Available in 4" and 6" sizes with both round and square trim options, they feature 5 CCT selectable settings (2700K–5000K) to accom

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

10WLED/DW/4/CCT-SEL/RND/RD/WH

Sloped Ceiling Compatible:

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Material:

Aluminum

Wattage Selectable:

Weight Lb.:

0.93

Manufactured By:

Satco Products Inc.
