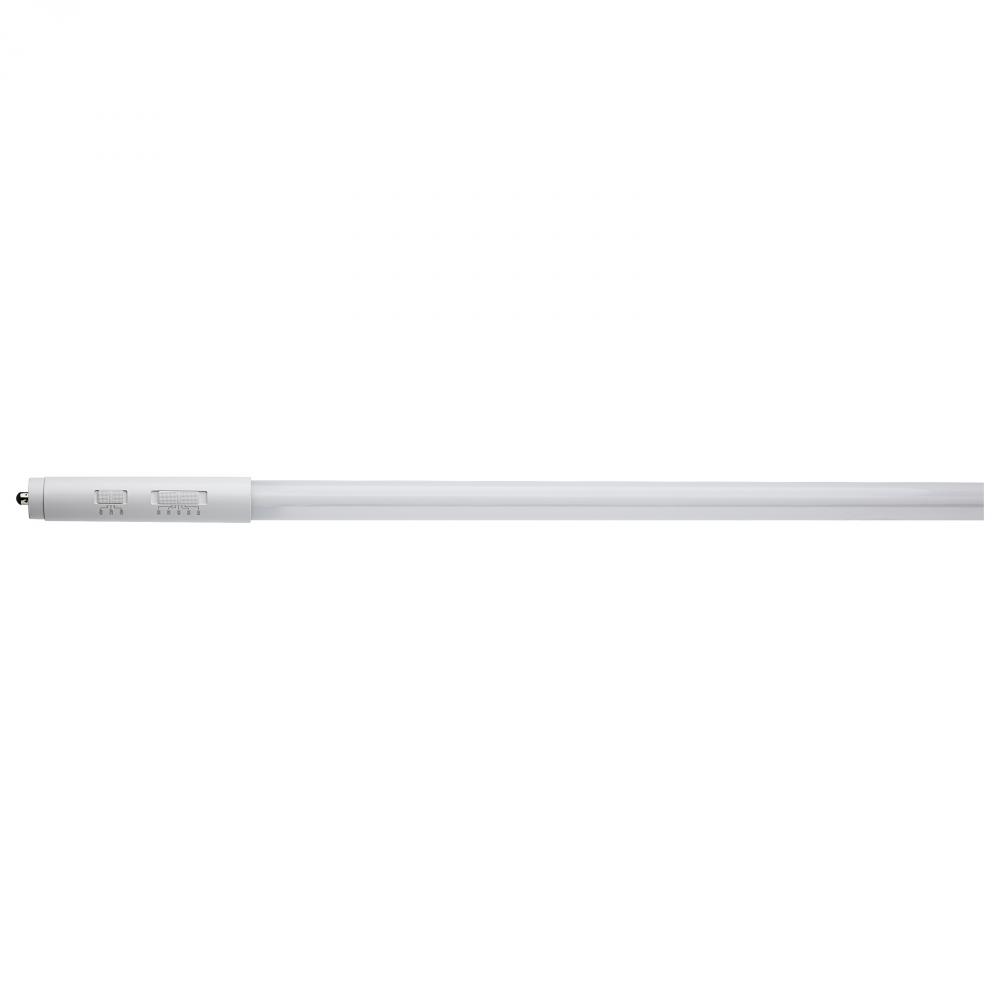

24/32/40 Watt T8 LED; 30K/35K/40K/50K/65K CCT Selectable; 8 Foot; Ballast Bypass; Fa8 Base; 120-277

Satco Products Inc.
24/32/40 Watt T8 LED; 30K/35K/40K/50K/65K CCT Selectable; 8 Foot; Ballast Bypass; Fa8 Base; 120-277

Part Number: S11758

UPC: 00045923117589

List Price:

/ / 1

($37.99 / 1)

WAS

Call for Price

9200 Available from Manufacturer

Quantity:

Finish Family :

White

Return

Add To Cart

Add To Estimate

Add To Wishlist

Compare Item

Product Overview

24/32/40 Watt T8 LED; 30K/35K/40K/50K/65K CCT Selectable; 8 Foot; Ballast Bypass; Fa8 Base; 120-277 Volt

Specifications

Details

Product Width:

1.00"

Category:

Light Bulbs

Subcategory:

LED Bulbs

Category:

LED

Sub-Category:

LED T8

Volts:

120V-277V

Bulb Dimmable:

Non-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/3500K/4000K/5000K/6500K

Bulb Shape:

Diameter:

EA Length:

95.87

Harmonized Codes:

8539.52.0051

Length:

93.88

Lumens:

3500L/4400L/5500L

Shap Carton Width:

7.56

Ship Carton Height:

3.86

Ship Weight:

12.13

Warranty:

5-Years

Weight:

0.88

BAA Compliant:

Ballast Bypass Direct:

Ballast Bypass

Ballasting Requirements:

Ballast Bypass

Beam Spread:

210

Bulb ANSI Base:

Fa8

Bulb Base:

Single Pin

Bulb Finish:

White

Carton Cubic Feet:

1.619

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Soft White to Daylight

Country Of Origin:

China

CRI:

80+

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

S-3Y6HM9

DLC Primary Use:

Internal Driver/Line Voltage (UL Type B) Lamps

Efficacy:

145.83/137.50/137.50 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

24W/32W/40W Wattage Selectable

Feature 10:

Ideal for use in Warehouses, Box Stores, Grocery Stores, Gymnasiums

Feature 2:

3000K/3500K/4000K/5000K/6500K CCT Selectable

Feature 3:

120V-277V Range Voltage

Feature 4:

PET Coated Glass Tube; NSF Rated

Feature 5:

Damp Location Rated

Feature 6:

Double Ended Wiring

Feature 7:

Optional R17d Base Caps Included

Feature 8:

Compatible with SATCO S8002 10W Emergency Driver

Feature 9:

Suitable for Open and Enclosed Fixtures

Flicker Free:

Flourescent Equivalent:

59W/86W/96W

Has Camera:

Has Emergency Battery:

Housing Color:

White

Includes:

(1) Set R17d & Fa8 Endcaps

IOT Enabled:

Lamp Ballast Type A/B/C:

Type B

Lamp End Type:

Double Ended

Lamp Filament:

LED

Location Rating:

Damp

Long Description:

SATCO NUVO's S11758 T8 8' ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a

Material:

Glass

Nominal Length:

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-20C (-4F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Egg Crate

Power Factor:

0.9

Quantity In Pack:

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's T8 8' ballast bypass lamp is field selectable, offering three wattage options and five CCT options in one convenient unit. Built for use in Fa8 lamp holders, it also comes with R17d adapter caps, making it versatile for use in a variet

SDS class:

LED_Lamp

Shatter Proof Text:

PET Coated

Short Description:

40T8L/96/8CCT5/B/CF/U

Specification Notes:

Not for use in fully enclosed vapor tight fixtures

Surge Protection:

Built-in surge protection - 1KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

<25%

Wattage Selectable:

Yes

Watts:

24W/32W/40W

Manufactured By:

Satco Products Inc.

Satco Products Inc. 24/32/40 Watt T8 LED; 30K/35K/40K/50K/65K CCT Selectable; 8 Foot; Ballast Bypass; Fa8 Base; 120-277
